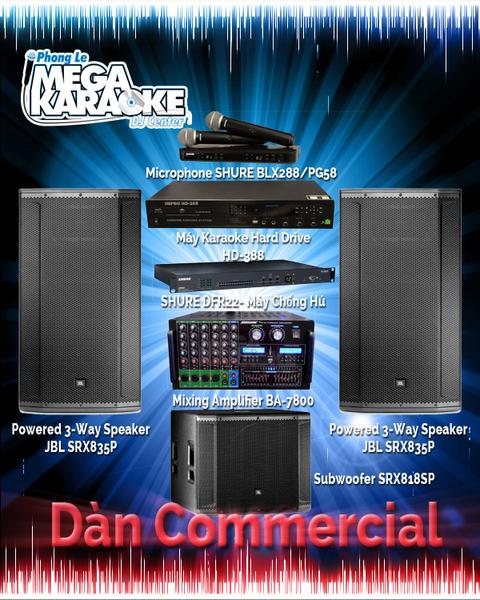

Dàn Commercial #1: BLX288/PG58, HD-388(6TB), DFR-22, BA-7800, SRX-818 SP, SRX-835 P

Commercial Pack is one of our perfect karaoke systems. The package is a combination of mixing amplifier BA-6800,speakers JBL PRX-735, microphone Shure BLX288/PG58, karaoke hard drive HD-388 (4TB), subwoofer JBL PRX-718XLF, and feedback reducer DFR22.

Shure BLX288/PG58 Dual Handheld Wireless Microphone System (Pair)

Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage. Shure BLX288/PG58 includes PG58 handheld transmitters and BLX88 dual-channel receiver.

BLX2 Handheld Wireless Transmitters

Features:

• Integrated microphone capsule design, featuring PG58, SM58®, or Beta 58A® options. This transmitter includes the PG58 capsule.

• Lightweight, rugged construction

• Color ID caps (available separately)

Specifications:

• Audio Input Level gain 0dB: -20 dBV maximum -10dB: -10 dBV maximum

• Gain Adjustment Range 10 dB

• RF Transmitter Output 10 mW, typical varies by region

• Dimensions 224 mm X 53 mm dia. (8 7/8 X 2 1/8 in.)

• Weight 218 g (7.7 oz.) (without batteries)

• Housing Molded ABS

• Power Requirements 2 LR6 AA batteries, 1.5 V, alkaline • Battery Life up to 14 hours (alkaline)

 BLX88 Dual Channel Receiver

Features:

• XLR and ¼" output connectors vMicroprocessor-controlled internal antenna diversity

• Two-color audio status indicator LED

• Green: Normal audio levels

• Red: Excessive audio levels (overload / clipping)

Specifications:

• Output Impedance XLR connector: 200 Ω 6.35 mm (1/4”) connector: 50 Ω

• Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone

• XLR connector: –27 dBV (into 100 kΩ load) 6.35 mm (1/4”) connector: –13 dBV (into 100 kΩ load)

• RF Sensitivity -105 dBm for 12 dB SINAD, typical Image Rejection >50 dB, typical

• Dimensions BLX4: 40 mm X 188 mm X 103 mm (H x W x D) BLX88: 40 mm X 388 mm X 116 mm (H x W x D)

• Weight BLX4: 241 g (8.5 oz.) BLX88: 429 g (15.1 oz.)

• Housing Molded ABS

• Power Requirements 12–15 V DC @ 160 mA (BLX88, 320 mA), supplied by external power supply (tip positive)

Shure DFR-22 Audio Processor With Feedback And Hi-Low Audio Reducer For Karaoke And Live Music

 The DFR22 from Shure is a two-input, two-output digital audio processor with feedback reduction.

• Digital feedback reducer, in both mono and stereo processors
• Automatic gain control
• Combining and non-combining ten- and thirty-band graphic equalizers
• Three- to ten-band parametric equalizers with cut and shelf filters
• Two-way crossover and splitter
• Subwoofer control
• Gate/downward expander
• Mono and stereo compressor/limiter with soft knee option
• Ducker
• Peak stop limiter

Bason BA-6800 1400W Max Professional Mixing Amplifier

 What will you do with 1400W of power? With the Bason BA-6800, there are so many entertaining options right at the touch of your fingers. This mixing amplifier is a superb product for Professional Karaoke singers and the guitar/keyboard musician. It includes 3 Mic Inputs along with Guitar and Keyboard inputs. PLUS there are more features: the 20 band EQ plus individual Mic Echo, EQ Hi, Mid, and Low controls – these controls give the singer the ability to highlight and adjust vocals (stronger vocals – higher tone – less vocal exertion). Stream MP3s from your Ipod or Iphone music directly into the BA-6800 to dance the night away. Also the BA-6800 is the first of its kind to include HDMI inputs for HD Video and Audio for a karaoke mixing amplifier. This mixing amplifier to truly perfect for the home use or professional use.

Features:

•700W + 700W Watts Max Power Output
•Built-in MP3G Player Module
•Recording function
•LCD Monitor Control Station
•Bluetooth send/receive from any device
•Console Separate Adjustment
•4 Audio/Video Inputs: DVD/AUX/BGM/USB Module
•3 Video Inputs: DVD/AUX/BGM and 1 HDMI Output
•1 RCA Audio/Video Output
•1 SD Card Input + USB Port Input)
•L/R Multiplex Channel Output Selector
•Music Low, Mid, High, Balance, Volume Controls
•Microphone Delay, Repeat, Echo, Low, High Volume Controls<
•Microphone Volume Controls for Low, Mid, High, Echo, Balance, Volume for individual microphones
•5 Front 1/4" Microphone Inputs, 1 Guitar Input & 1 Piano Input
•Master Microphone Control
•Master Volume Control
•4 Audio Outputs (Record Out, Line Out, Subwoofer Out (Music/ Mixing), Mic Out (High/Low)
•4 Banana Plug Speaker Connectors
•115/230 Voltage for Worldwide Compatible
•Built-in BBE Sonic Maximizer for both vocal and music
•DSP Digital Sound Processor
•True Vocal Cancellation Function to remove up to 90% of lead vocal on any audio track
•Temperature-Active, Ultra-Low-Noise Fan for non-stop operation
•Pre-Input and Pre-Output for External Effort
•110W AC Power Outlet

 Specifications:

•Maximum Output: 700W + 700W @ 8 Ohms Max
•Microphone Input Sensitivity: <20mV
•Music Input Sensitivity: 250mV / 47K Ohms / 1kHz
•Microphone Frequency Response: 20Hz - 20 kHz / 3dB
•Music Frequency Response: 20Hz - 20 kHz / 3dB
•Microphone EQ characteristics: Treble: +/- 10dB (10kHz), Bass: +/- 10dB (100Hz)
•Music EQ 4 Channel characteristics: Treble: +/- 10dB (10kHz), Bass: +/- 10dB (100Hz)
•Key Control Range +/- 6 Half Tones
•Speaker Wattage Impedance: 4 Ohm - 8 Ohm
•Voltage: AC 115V - 230V Manual Select

JBL PRX718XLF 18'' Self-Powered Extended Low Frequency Subwoofer System

JBL PRX718XLF 18 Inch Self-Powered Extended Low Frequency Subwoofer SystemThe PRX718XLF extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX718XLF performs with exceptional efficiency and control. The subs are stackable and light-weight ensuring quick set-ups and tear-downs. And due to their rugged construction are perfect for AV rental inventories. With a pole receptacle (that accepts a SS4-BK or SS4-BK24) on the top panel and integrated stereo pass-thru this is the most powerful low-frequency complement to the PRX full-range systems. The addition of a polarity reverse option further enables system optimization.

Features

• 134 dB peak SPL
• 18" Differential Drive low-frequency driver for low-distortion and higher SPL
• Efficient Class-D amplifier technology
• DSP Input limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ
• Integrated stereo pass-thru, with selectable HP filter, and polarity reverse
• 2 x XLR-1/4" combination inputs, with 2 x XLR loop-thru
• Pole receptacle accepts a SS4-BK or SS4-BK24 on the top panel
• Multiple handles with comfort rubber grips for easy transport
• Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex finish.
• Cloth backed, dent-resistant 16 gauge steel grilles

Specifications

• System type: Self-powered 18" bass reflex
• Max SPL Output: 134 dB
• Frequency Range (-10 dB): 30 Hz - 103 Hz
• Frequency response: 35 Hz - 87 Hz
• Amplifier Design: Class D

JBL PRX735 15 Inch 3 Way Powered Speaker (SINGLE)

The PRX735 is a self-powered, lightweight three-way loudspeaker system capable of delivering a very high level of performance over a broad bandwidth.

Features:

• 1500 watts of onboard Class D amplification
• Tri-amplified with 500W to each driver
• 15" 275F Differential Drive woofer
• 6.5" horn-loaded midrange transducer
• 1.5" annular-polymer-diaphragm neodymium compression driver
• 90 x 50 degree HF horn
• Sophisticated onboard DSP
• XLR, TRS, and RCA jacks give you I/O flexibility
• Poplar plywood construction for light weight and roadworthiness
• Grilles are made from dent-resistant 16 gauge steel
• Handles are made from lightweight glass-filled nylon for strength and durability
• Weighs 77 pounds
• Floor, stack, or fly mounting
• Suspension points are constructed from 14 gauge steel

Specifications:

• System Type: Self powered 15", three-way, bass-reflex
• Max SPL Output: 136 dB
• Freq. Range (-10 dB): 35 Hz - 20 kHz
• Freq. Response (+/-3 dB): 42 Hz - 20 kHz
• Coverage Pattern: 90 x 50 degrees nominal
• Amplifier Design: Class D
• Power Rating: 1500 W (3 x 500)
