Description

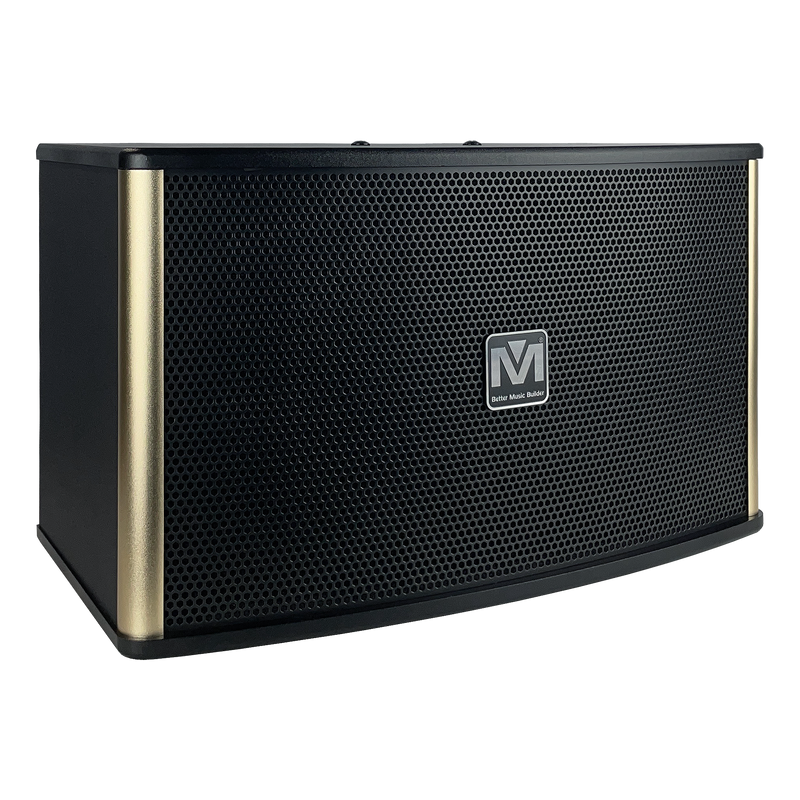

The Better Music Builder is excited to introduce the next generation of the Classic Series speaker, the CS-610 G5.
The high-performance speaker uses dynamic audio computer simulation design technology. It enables the speaker to produce high-quality sound, precise clarity, and strong reliability. These speakers are made using a high temperature-treated magnesium diaphragm, a voice coil with copper cladding aluminum wire, and a compression cavity designed with linear phase technology. Its featured magnetic circuit tweeter generates high magnetic energy, low distortion, excellent ventilation function, and high-strength plywood that can absorb unwanted noise for high performance.
Utilizing the added mid-frequency tweeter, the 3-way speaker delivers a new dimension to its dynamic sound. The midrange driver is a very significant part of the audio sound spectrum as it creates sounds that are most familiar to the human ear such as musical instruments and the human voice.
Features:
- 3-Way Full-Range PVC/Plywood Speaker
- Max. Power Handling: 600 Watts
- 2 x 3” tweeters [paper cone high-frequency drivers]
- 2 x 3” tweeters [paper cone middle-frequency drivers]
- 1×10” woofer [low-frequency woofer]
- High output SPL and sensitivity
- Copper wired voice coil
- Speaker input terminal (banana plug or insert type)
- Frequency response 20Hz~20kHz
- Sensitivity 92dB/1W/1M
- Dispersion Angle: H90° x V60° (-6dB)
- The front grill is adjustable 180 degrees
- Cabinet design for FOH use
- Flexible and easy to install configurations (wall, ceiling, under balcony)
Tech Specs:
- Type: Front
- Power Rating: Peak 600W; RMS 200W
- Cabinet Type: PVC, Plywood
- Supported Fixture: Ceiling Mount, Wall Mount, Floor Stand
- Woofer: 10 inches (1 unit)
- Tweeter: 3 inches (4 units: High-Frequency x 2, Middle-Frequency x 2)
- Rated Impedance: 8 ohms
- Frequency Response: 20Hz ~ 20kHz (± 3 dB)
- Sensitivity: 92dB/1W/1M
- Maximum SPL: 110 dB
- Dispersion: 90° x 60° (HxV)
- Crossover Frequency: LF: 300Hz, HF: 6.3kHz
- Dimension (WxHxD): 19.7 x 11.8 x 11 in / 50 x 30 x 28 cm (each)
- Packing Dimension (WxHxD): 27 x 23 x 14.6 in / 68.5 × 58.5 × 37 cm (a pair)
- Net Weight: 21 lbs / 9.5 kg (each)
- Shipping Weight: 46.3 lbs / 21 kg (a pair)
- UPC Code: 743062981749
